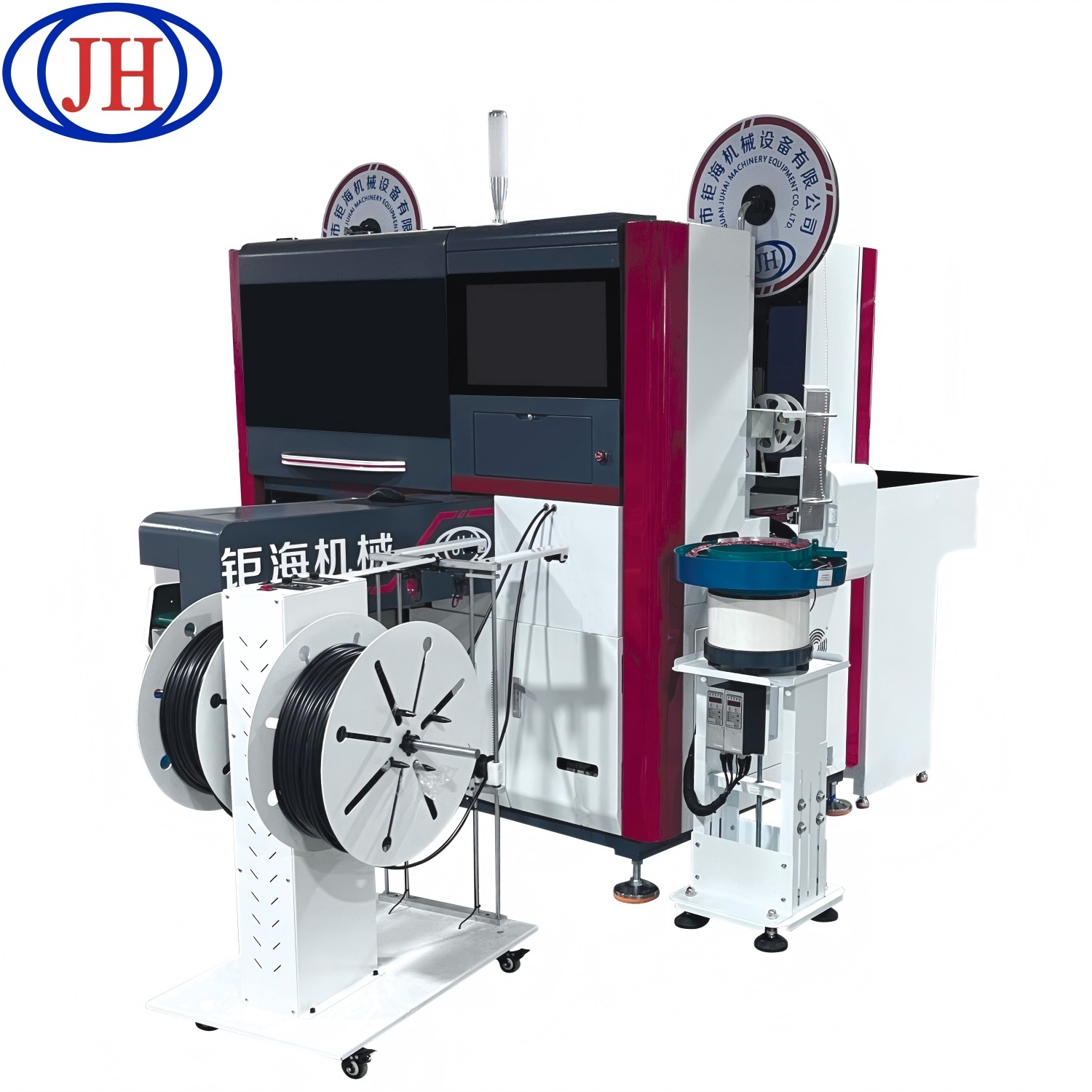

دستگاه درج تمام اتوماتیک با لوله میانی

Model

JH09B-CG Fully Automatic Dual-End Crimping with Mid-Tubing

Standard Feature

Auto wire feed/cut; A/B-end strip, crimp & insert; mid-tubing; B-end switchable to twist/tin or partial strip

Optional Function

Terminal crimp force monitor, Tubing arrangement function, Housing/Wire marking, Heat-shrink tube processing

Inspections

Flux/Solder wire/Wire presence, Wire knot detection, Terminal/Housing presence, Air pressure alarm, Motor abnormality, CCD vision (strip quality, insertion status, color sequence)

Production Capacity

220-280 cycles/H (12 terminals/cycle, wire length ≤200mm). Varies by product.

Cutting Length

Dual-insertion (no tube): 35mm-800mm; With mid-tubing: 60mm-800mm. Tube length: 40mm-700mm (Wire must be ≥ tube + 40mm)

Cutting Accuracy

±0.1mm + (Cutting Length x 0.1%) or less (Subject to wire material)

Compatible Housing Pitch

0.8, 1.0, 1.2, 1.25, 1.5, 2.0, 2.5, 2.54, 3.0, 3.96 (mm), etc. Single-layer housings, compatible with 2P-12P.

Applicable Wire Range

AWG#32-AWG#18

Strip&Tin Dimensions

End-A/B Strip: 0-6mm; End-B Twist Length: 4-6mm; End-B Tin-dip Length: 0.5-6mm ( Customizable )

Air Pressure

0.5-0.7MPa (clean, dry air)

Machine Dimension

1900mm x 2000mm x 1800mm (Excluding wire frame & oven)

Power Supply

AC220V

Machine weight

Approx. 980 KG (Excluding wire frame & oven)

Main component configuration

Servo Motors (Inovance, Leadshine), TBI Ball Screws, HIWIN Linear Guides, AirTAC Cylinders, Self-developed PLC, YIHEDA Standard Parts, Sensors (Panasonic, CZ, Omron), Vision System (Hikvision)
