دستگاه درج چین دار با طول متغیر تمام اتوماتیک

Model

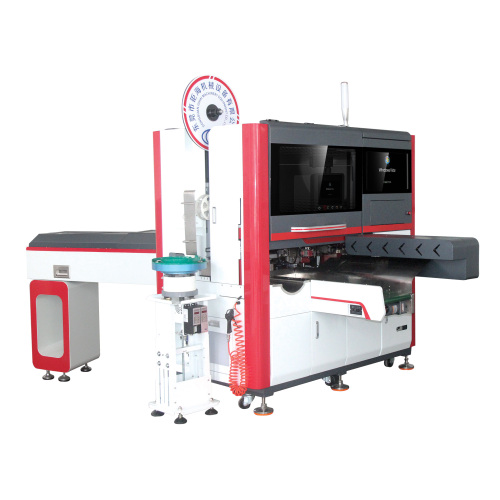

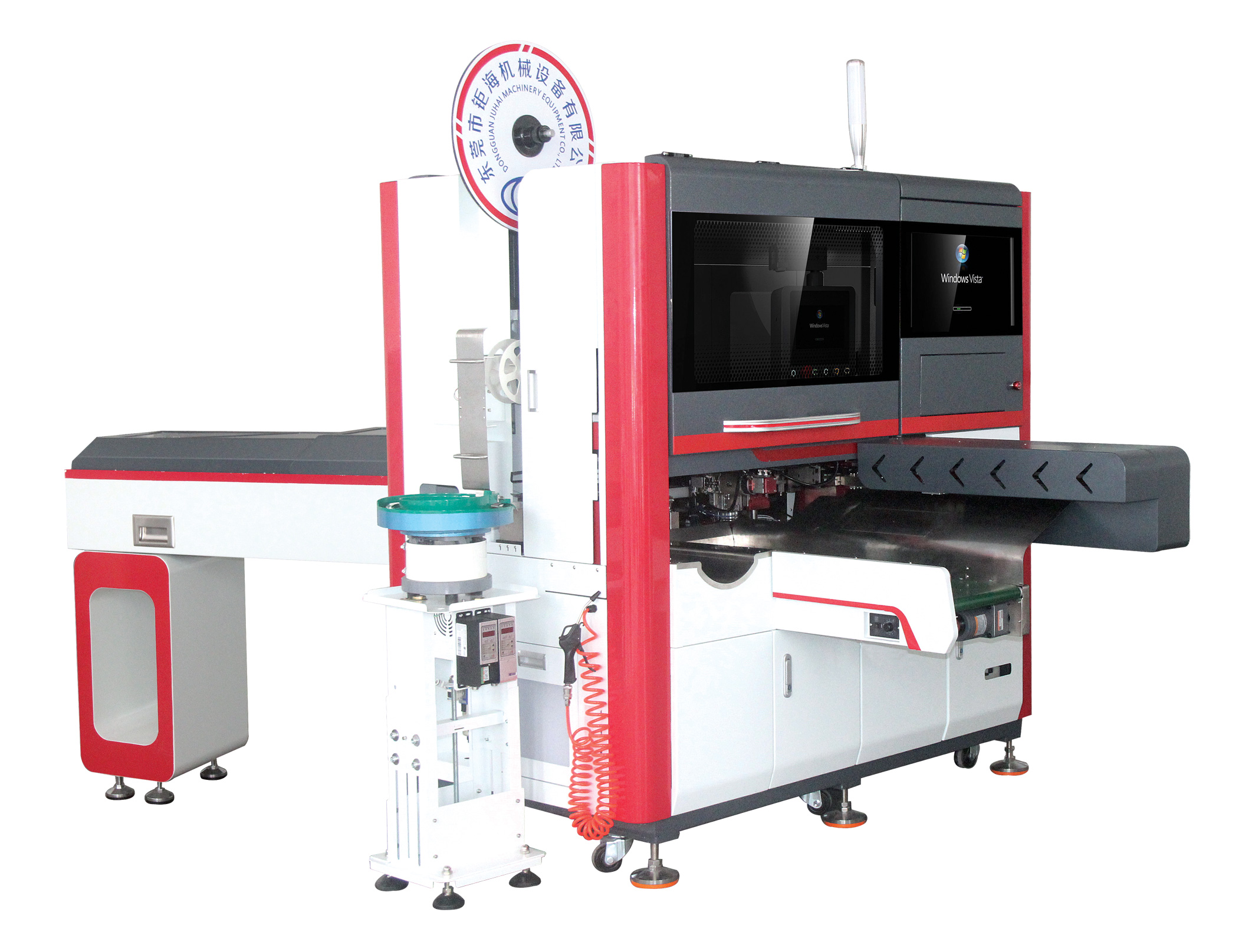

JH-12 Fully Automatic Variable-Length Single-End Crimping Machine

Standard Feature

Auto wire feeding/cutting; A-end: strip/twist/tin (half-strip optional), variable length; B-end: strip/crimp/insert

Optional Function

Rear-end tinning, terminal pressure/CCD inspection, wire arranging, 4/6-level twisting, tubing, housing/wire marking, laser marking, robotic loading

Inspections

Rosin/solder/wire presence, wire knots, terminal/housing detection, air pressure alarm, motor fault, CCD vision (strip/insertion/color sequence)

Production Capacity

Compatible with 11 different lengths; Max. length difference ≤300mm (customizable for >300mm)

Cutting Length

Electronic wires: 35–800mm (customizable)
Ribbon cables: 40–800mm (customizable)

Cutting Accuracy

±0.1mm + 0.1% of length

Compatible Housing Pitch

0.8, 1.0, 1.2, 1.25, 1.5, 2.0, 2.5, 2.54, 3.0, 3.96mm (2P–12P)

Applicable Wire Range

AWG#32-AWG#18

Strip&Tin Dimensions

A-end: strip 0–9mm, conductor 4–9mm, tin 0.5–9mm
B-end: strip 0–6mm (customizable)

Air Pressure

0.5-0.7MPa (clean, dry air)

Machine Dimension

3500 × 1750 × 1800 mm (excluding twister/oven)

Power Supply

AC220V

Machine weight

Approx. 700 KG (Excluding wire frame & oven)

Main component configuration

Servo/stepper motors (Inovance/Leadshine), TBI ball screws, HIWIN rails, Airtac cylinders, self-developed PLC, Yihada standard parts, Panasonic/Jiazhun sensors, Omron sensors, Hikvision vision system
