ماشین پردازش سیم اتوماتیک برای درج چین دار

Model

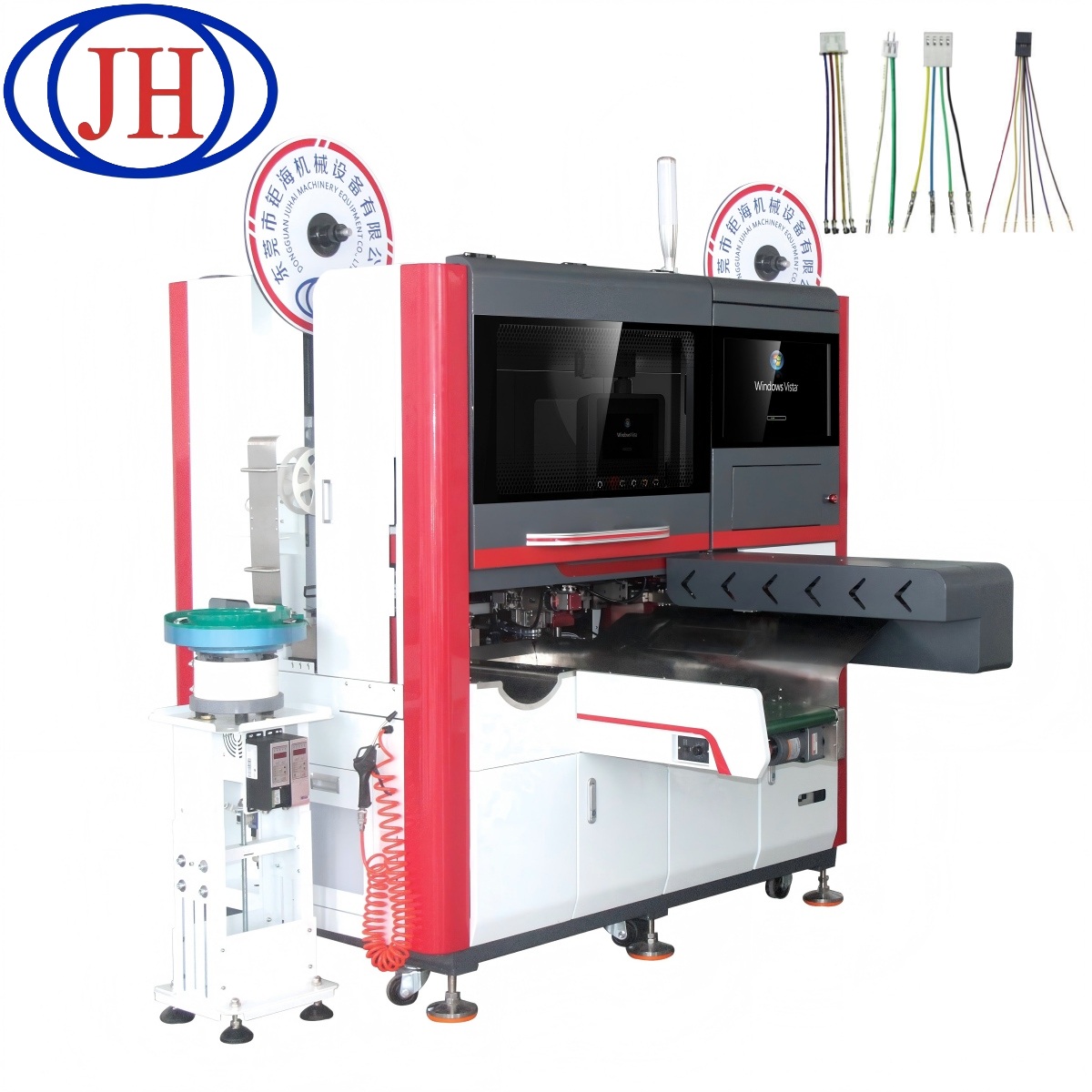

JH07B Fully Automatic Dual-Crimp Single-Insert Machine

Standard Feature

Auto wire feed/cut, A-end: strip/crimp/insert; B-end: strip/crimp (twist/tin/half-strip optional)

Optional Function

Terminal pressure detection, CCD inspection, wire arranging, 4/6-level strand twisting, tubing, housing/wire marking, servo wire feeding, flat cable housing, laser marking, robotic loading, wrapping

Inspections

Flux/tin presence, wire presence/kinking, terminal/housing detection, air pressure alarm, motor fault, CCD vision (stripping, insertion, color sequence)

Production Capacity

Electronic wires: 350–400 cycles/hr (24 terminals/cycle, ≤200mm)
Ribbon cables: 280–300 cycles/hr (24 terminals/cycle, ≤200mm)

Cutting Length

Dual-crimp/single-insert: 32–800mm (customizable)
Single-crimp/single-insert: 25–800mm
Ribbon cables: 60–800mm (customizable)

Cutting Accuracy

±0.1mm + 0.1% of length

Compatible Housing Pitch

0.8, 1.0, 1.2, 1.25, 1.5, 2.0, 2.5, 2.54, 3.0, 3.96mm (2P–12P single-row housings)

Applicable Wire Range

AWG#32-AWG#18

Strip&Tin Dimensions

A/B-end strip: 0–6mm
B-end conductor twist: 4–6mm, tin dip: 0.5–6mm (customizable)

Air Pressure

0.5-0.7MPa (clean, dry air)

Machine Dimension

1900 × 2000 × 1800 mm (excluding twister/oven)

Power Supply

AC220V

Machine weight

Approx. 900 KG (Excluding wire frame & oven)

Main component configuration

Servo/stepper motors (Inovance/Leadshine), TBI ball screws, HIWIN rails, Airtac cylinders, self-developed PLC, Yihada standard parts, Panasonic/Jiazhun sensors, Omron sensors, Hikvision vision system
